Deep Hole Wireline Drill Rod

*Depth capacity ratings are based on published industry values. Di-Corp uses comparable materials and manufacturing processes, and is confident the same results will be achieved. It is important to note that the care and handling, in addition to drilling conditions, practices, and equipment will play a significant role in the ultimate depth capacity and performance of any drill rod.
**Di-Corp is testing its rod offering at an independent facility and will publish values as they become available. Pullback is rated on a new, unused drill rod.

High Quality Materials

Di-Corp uses only the highest quality alloy steel tubing with a uniform wall thickness for greater joint integrity, balanced rotation and even wear.

Di-Corp drill rod is processed with an additional stress relief heat treat, to eliminate bent rods.

A final quench and temper heat treat process is performed before machining the thread to strengthen the rod joint for greater torsional and tensile properties.

Precision Machined Threads

• Less bulging and breaking
• Complete line of accessory products are manufactured with the same precision
• Finished threads are precision machined and not distorted by any other process, providing a superior joint fit with less chance of the joint pulling apart

WARNING: All threads are precision machined and mixing Di-Corp rods with other manufacturers’ rods, adaptors, or threaded accessories is not recommended. Failure to adhere to this recommendation may cause premature failure and will void our warranty.

• Keeps the joint from slipping apart
• Less bulging and breaking
• Prevents fluid loss
• Complete line of accessory products are manufactured with the same precision

• Pin ends are stamped with a code for easy traceability
• “D” wireline drill rods have two identification grooves behind the pin end, where “D” LITE* drill rods have only one groove
• End cap decals are used to identify the product once packaged for shipping

*“LITE” refers to Drillers Edge wireline drill rods that have been manufactured using variable wall material while “D” refers to our deep hole wireline drill rods. Additional sales sheets are available for both versions of drill rod, contact your sales representative.

WARNING: All threads are precision machined and mixing Di-Corp rods with other manufacturers’ rods, adaptors, or threaded accessories is not recommended. Failure to adhere to this recommendation may cause premature failure, an inspection may result in the warranty becoming void.

• All rods are packaged and sold in bundles
• The entire length of the rod is coated with Krown rust protection oil
• Box and pin ends are protected with plastic end caps to ensure the anti-galling thread compound does not get contaminated or removed before first use

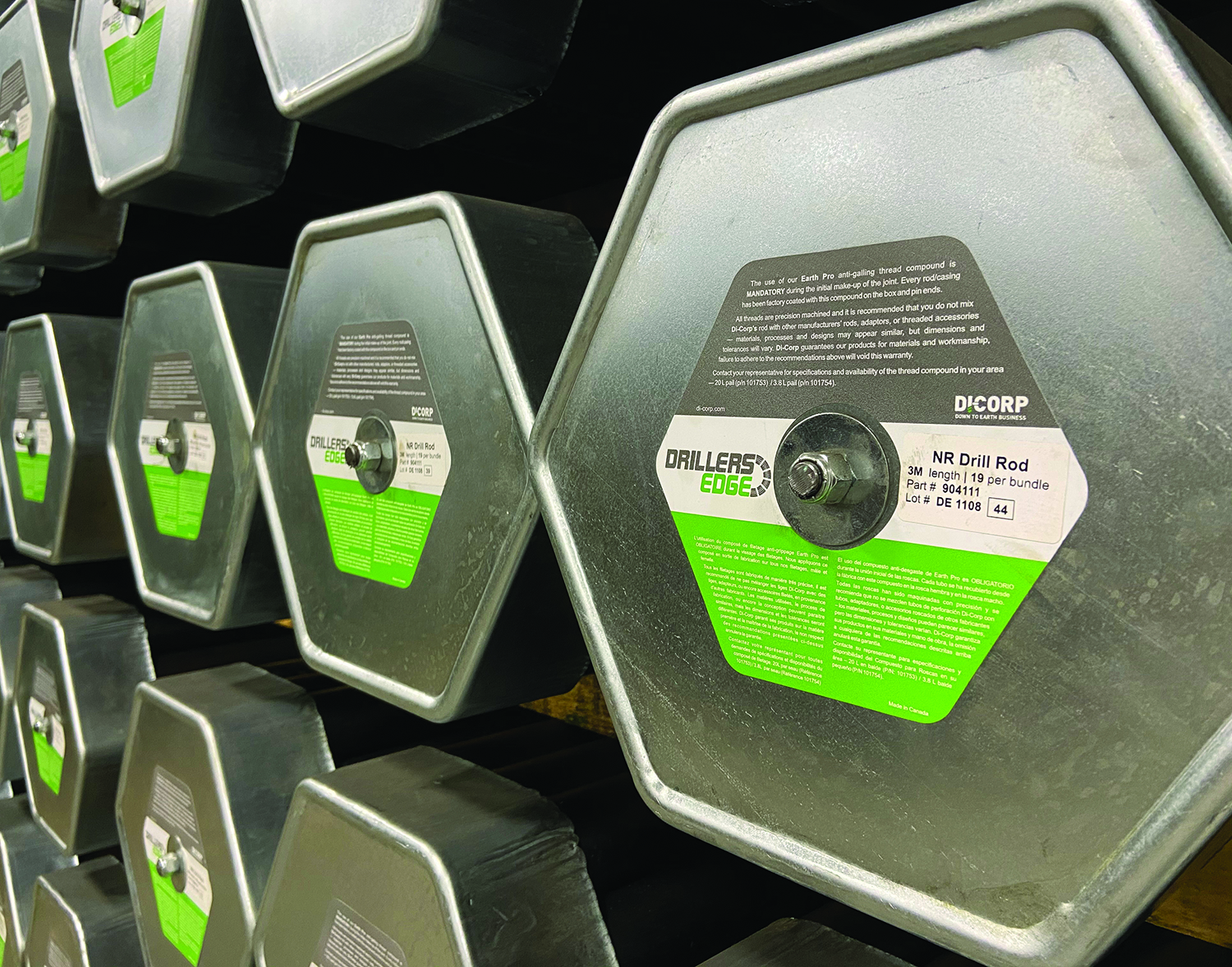

• Hexagonal bundle end caps further protect the rod ends during shipping and make them easier to stack

Packaging & Shipping Information – Drill Rod
