Kwik Klamps and Parts

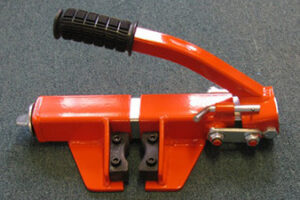

The most popular patented tool used worldwide by well drillers, pump installers, well servicemen, and environmental drillers.

• All steel construction but light weight-only 14 lbs.
  Easy to operate, over center locking of jaws when downward pressure is applied to lever.
• Kwik Klamp allows workers to bring pipe joint up to an easy working level.
• Equipped with serrated and hardened replaceable jaws.
• Excellent holding capability with load tests over 3000 lbs.
• Designed to hold pipe sizes 1″ – 2″(1.315″OD-2.375″OD) PVC, stainless, & galvanized. (not intended for bare steel drill rod)
• Safety pin to prevent accidental unclamping.
• Kwik Klamp is one of the safest time saving tools you will ever own.

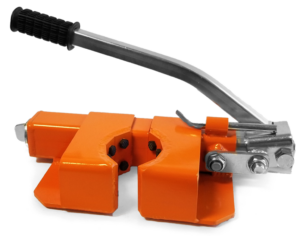

The heavy duty Kwik Klamp 2 is the driller’s answer for holding the larger pipe sizes 2-1/2″, 3″, and 4″. Kwik Klamp 2 is an enlarged version of our popular Kwik Klamp 1 which is for pipe sizes 1″ through 2″, with many of the same features. This tool has been used worldwide by environmental drillers, pump installers, well serviceman, and water well drillers.

• Main body is constructed of 2″ and 2-1/2″ 1/4″ wall steel tube.
• Easy to operate, over center locking of jaws when downward pressure is applied to a 19″ long lever handle.
• 1/2″ Safety pin used to prevent accidental unclamping.
• Kwik Klamp 2 allows workers to bring pipe or drill joint up to an easy working level.
• The tool weighs only 30 lbs. and is 20″ long x 7-1/2″ wide.
• Jaws are equipped with 16 carbide tipped grippers.
• Excellent holding capability, with load tests done over 7,000 lbs.
• Designed to hold pipes 2-1/2″, 3″ and 4″ (2.875″OD-4.5″OD) PVC, HDPE, stainless and galvanized steel.
• Kwik Klamp is one of the safest, time saving tools you will ever own.

The heavy duty Kwik Klamp 3 is designed to hold 6″ PVC pipe. This Kwik Klamp 3 can also hold 5″ pipe with an additional jaw set. The Kwik Klamp 3 is very similar to the Kwik Klamp 2 which is for pipe sizes 2-1/2″ through 4″. The Kwik Klamp has been used worldwide by environmental drillers, pump installers, well serviceman, and water well drillers.

• Main body is constructed of 2″ and 2-1/2″ 1/4″ wall steel tube.
• Easy to operate, over center locking of jaws when downward pressure is applied to a 19″ long lever handle.
• 1/2″ Safety pin used to prevent accidental unclamping.
• Kwik Klamp 3 allows workers to bring pipe or drill joint up to an easy working level.
• The tool weighs only 37 lbs. and is 20″ long x 7-1/2″ wide.
• Jaws are equipped with 20 carbide tipped grippers (3/8-16×1/2).
• Excellent holding capability, with load tests done over 7,000 lbs.
• Designed to hold 6″ PVC or HDPE pipe.
• Kwik Klamp is one of the safest, time saving tools you will ever own.
