Down the Hole Hammer (DTH) & RC Drilling
Your Best Source for Down the Hole Drilling Products
Through our US subsidiary, Jentech Drilling Supply, and Di-Corp’s various warehousing locations and global supply and distribution network, we can provide a full range of drilling supplies for DTH Hammer and RC Drilling applications. Our range of consumables includes DTH drill bits, drill rods and collars, stabilizers, drilling fluids and additives, pipe and bit handling tools and much more. We carry a full line of DTH drilling supply products from the top manufacturers in the world and supplement that with our own lines of Jentech Hole Openers, Drag Bits, and Earth Pro drilling fluids. Di-Corp proudly serves customers in the following DTH and RC drilling disciplines:
Unmatched DTH & RC Hammers & Rotary Bits
We provide a diverse collection of RC, DTH, & Rotary drilling products to help you drill effectively in any rock formation.
Effectively drill in sand, clay, and other soft rock drilling formations with either step-type or chevron-type drag drill bits.
Whether you need Button Bits for harder formations or Milltooth bits for softer ground conditions, Di-Corp can source an impressive selection of rotary bits to help you drill through any rock formation and at your required hole dimension.
Achieve your sampling target at a lower total cost in soft to medium hard formations with high-performance tricone bits.
Casing Advancement System
Feel confident drilling in difficult ground conditions like boulders and loose formations with a premium casing advancement system.
Why Choose Di-Corp
As a leading manufacturer and distributor of specialty chemicals, parts and accessories serving the Energy, Mining, Construction, and Drilling industries, we’re focused on helping you with all aspects of your down-the-hole and reverse circulation drilling operations.
Global Supply Chain & Logistics
Frequently Asked Questions
What is a DTH hammer bit?

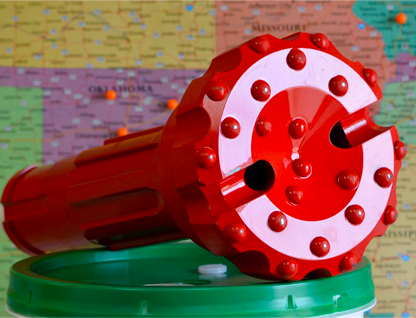

DTH hammer drill bits are made with quality alloy steel and precision machined, used in drill rigs for penetrating various rock formations. Down-the-hole hammers are drilling tools attached to a drill string and drilled into a bore to help break up tough rock through quick penetration.
What is the IADC Code, and how do you read it?
The International Association of Drilling Contractors devised a system to describe any tricone bit through a simple four-digit number. This streamlines the process of ordering a new tricone bit and reduces confusion for drillers everywhere.
The IADC classification system dedicates the first three digits to the design and function of the tricone, with the final digit being an alphabetical code for any additional features of the bit. Here is how to read an IADC Code properly:
|1||STEEL TOOTH BITS for Soft Formation STEEL|
|2||TOOTH BITS for Medium Formation|
|3||STEEL TOOTH BITS for Hard Formation|
|4||TUNGSTEN CARBIDE INSERT BITS
For varying formation hardness with 4 being the softest and 8 the hardest.
|1||1, 2, 3 and 4 are further breakdown of formation with 1 being the softest and 4 the hardest.|
|Third Digit||BEARING / SEAL TYPE|
|1||Standard open bearing roller bit|
|2||Standard open bearing roller bit, air-cooled|
|3||Standard open bearing roller bit with gauge protection which is defined as carbide inserts in the heel of the cone|
|4||Sealed roller bearing bit|
|5||Sealed roller bearing bit with gauge protection|
|6||Journal sealed bearing bit|
|7||Journal sealed bearing bit with gauge protection|
|Fourth Digit||ADDITIONAL FEATURES|
|S||Standard Steel Tooth|
|G||Extra Gage Protection|
|Z||Other Insert Shape|
The first digit represents the hardness of the rock formation for which the drilling tool buttons are best suited. The tool is assigned a number between one and eight, indicating the type of rock the teeth or buttons of a drilling tool are designed for:
If the first digit is a 1, 2, or 3, this indicates a steel tooth where 1 is engineered for soft rock formations, 2 for medium formations, and 3 for hard formations. If the first digit is a 4, 5, 6, 7, or 8, this indicates a tungsten carbide insert (TCI). 4 represents softer formations, with 8 representing the hardest formations.
The second digit represents further rock formation information. Regardless of tooth type, the second digit takes into account all factors of the bit and ranks the rock formations the drilling tool is best suited for on a scale from 1 to 4 formation hardness.
The third digit represents the bearing type of the drilling tool. For example, Tricone bits use different bearings depending on the type of material to be drilled. A 1 stands for standard roller bearings, 2 is for air-cooled bearings, and 3 is for open bearings with gauge protection. A 4 or 5 represents sealed roller bearings, with 4 being standard sealed roller bearings and 5 being a sealed roller bearing with gauge protection.
The numbers 6 and 7 represent sealed journal bearings, with 6 being a standard sealed journal bearing and 7 being a sealed journal bearing with gauge protection.
The fourth digit of the IADC Code is a letter indicating the special properties of the drilling tool.
Drill Through Any Rock Formation With Superior Quality Down-the-Hole & Reverse Circulation Drilling Products
Take advantage of efficient down-the-hole and reverse circulation drilling products that drill through a complete range of rock formations. Browse through our selection of DTH & RC drilling products and request a comprehensive quote today.
